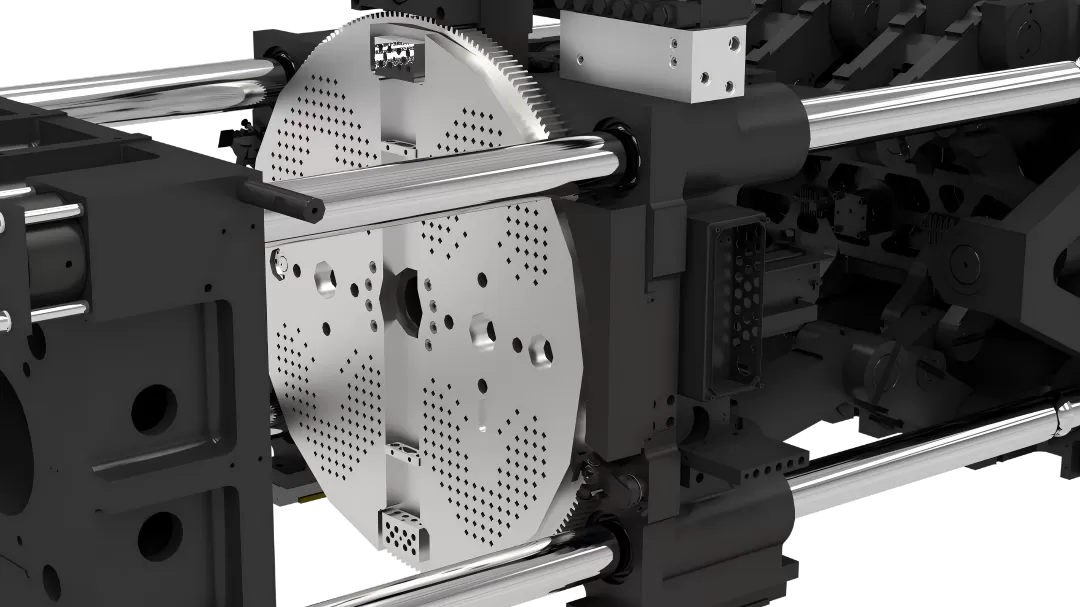

The turntable is controlled by the servo motor after 180° forward and reverse rotation, in combination with the positioning of the positioning cylinder, further controlling the accuracy of the turntable.
A patented pusher device is set on the back of the turntable to reduce the contact friction between the turntable rotation and the moving template.
The turntable gear is built-in, increasing the size of the mold installation surface and adapting to a wider range of mold installations.
The clamping device of the turntable ensures uniform force on the turntable and avoids the tilt of the turntable due to excessive weight of the mold, protecting the mold.
The support device of the turntable protects the mold and improves the yield rate.
High precision, enhancing injection accuracy
High product repeatability accuracy

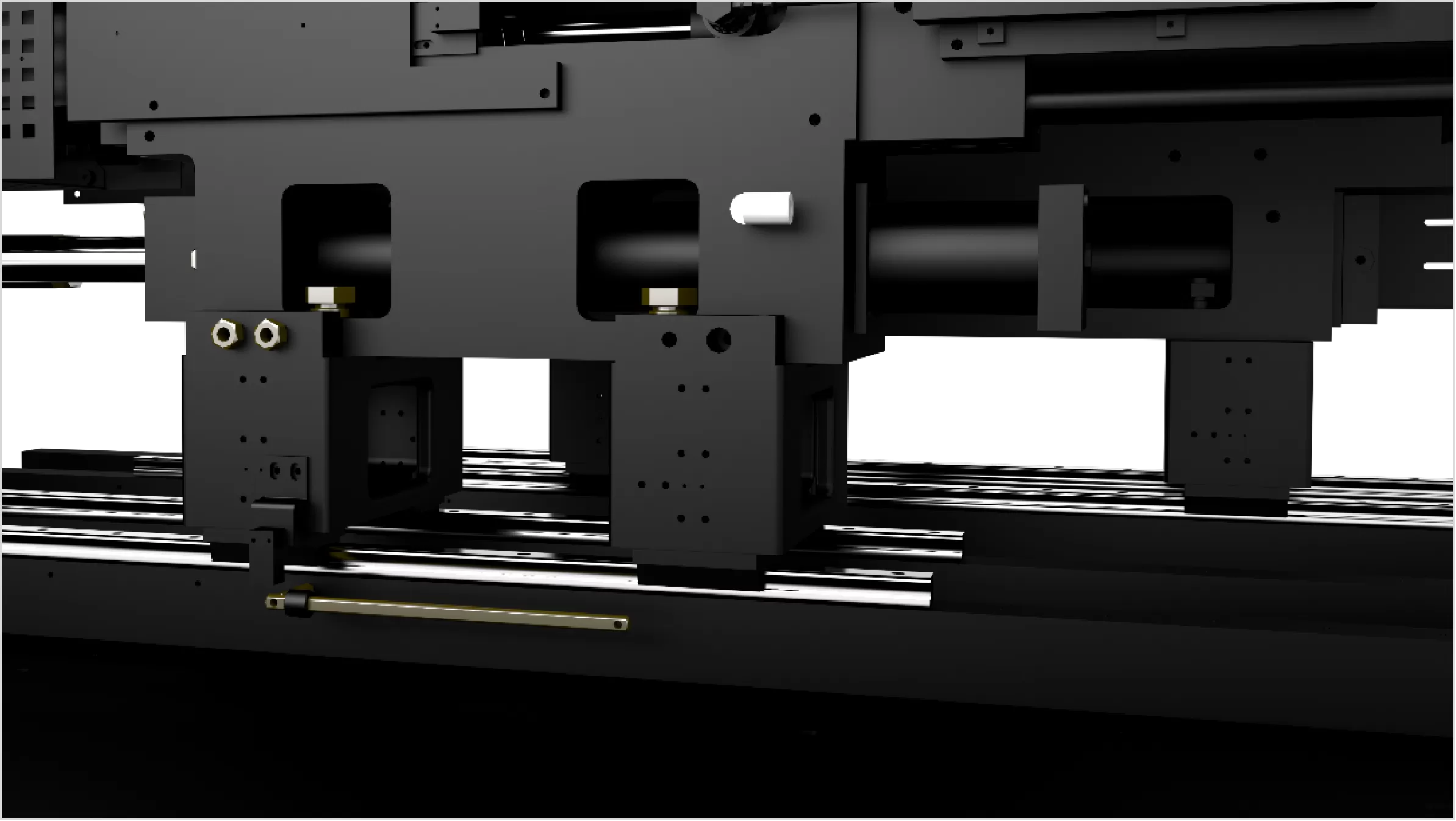

Low friction coefficient, stable operation of the injection table
High running speed
Low inertia actuator design, with fast response and high precision
German Bauchex seal structure design, with overall cylinder body design ensuring good leak prevention and stable injection
High injection accuracy: Injection position is controlled by electronic scale, melt glue back pressure is controlled by proportional valve
New generation PID temperature control, material pipe temperature control ±1℃
Independent material pipe group, injection action synchronized, shortening molding cycle
Flexible center distance structure, modular injection table combination design, meeting different product processing requirements
